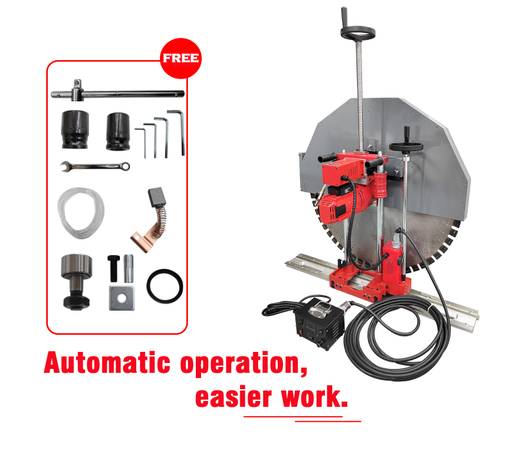

Fully Automatic Concrete Wall Cutter 023516 - $2,320 (Tampa)
QR Code Link to This Post
*cash preferred*
Description
Wall cutting machine is mainly used for building or old building transformation, reinforcement, change design, etc., can cut door holes, Windows or elevator holes and other large area wall cutting. The structure is non-destructive and formed once, which can avoid the damage of the traditional master knocking on the building structure. Save material resources, manpower, but also can save a lot of time and costs.
Wall cutting machine, the use of heavy industry grade double insulation high power motor and reducer, low failure rate, long service life, save maintenance costs. The special mechanical clutch protection device effectively prevents the damage to the machine and personnel due to misoperation. In addition to improving the construction quality and speeding up the construction speed, the fully automatic cutting machine also greatly reduces the labor intensity of the operator.
This is an automatic feed, automatic cutting (that is, the track is automatic, the
feed is also automatic), automatic wall cutting machine easy to operate, more
labor-saving, higher safety.
Parameter
Rated Voltage 220V
Input Power 6180W
Blade Diameter 31.5″(80cm)
Max Cutting Depth 12.6″(32cm)
No-load Speed 350rpm
Detail
Digital display control box
Digital display, real-time monitoring
of the host operation data, adjustable
speed, remote operation, safe and
durable.
Stainless steel clamp
Thickened steel clamping plate, high
strength, wear-resistant and not easy to
deformation.
Rotating handwheel
Folding rotating hand wheel, personality
design, easy to operate, all plastic
shell, high insulation strength.

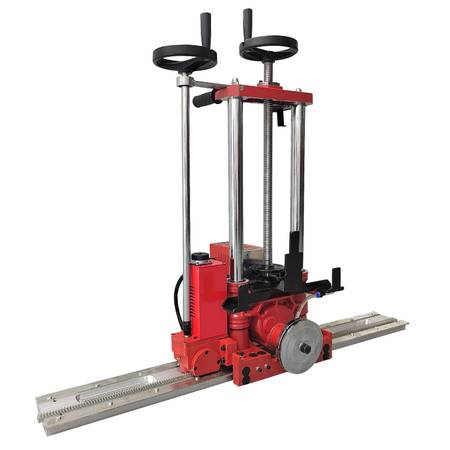

Aluminum profile track
Aviation grade aluminum profile refined,
high density, wear-resistant, not easy
to deformation or broken teeth, precision
run-in, teeth uniform, not stuck teeth.
Water inlet valve
Provide water when cutting the next door
to prevent excessive temperature damage
to the saw blade.
Quick connection plug
Fast connection between controller and
host, safe and convenient.
Precautions for use
1. Installation and fixation of the machine.
After installing the track, saw blade, and cover of the main machine, grasp the top of the machine with your hand and shake the machine vigorously from side to side. If the machine shakes, it is necessary to adjust the expansion screw on the rail and tighten it with a wrench. Cutting can only be carried out when the machine is not swayed laterally or longitudinally.
2.The motor inside should pay attention to waterproof.
If the motor inside water, will cause electric shock or motor burn.
3. Cutting must be cooled in the water inlet valve.
Because the overheated saw blade will shorten its life, so in the cutting process, please pay attention to be sure to supply water in the inlet valve, in addition, please pay attention to the use of recycled waste water, otherwise it will affect the flow of water, resulting in damage to water seals and other parts.
4. Use a diamond saw blade.
This cutting machine should use diamond saw blades, and other cutting saw blades cannot be used instead of diamond saw blades.
5.Allow the saw blade to fully rotate before starting cutting.
Turn on the switch and wait until the saw blade has fully rotated before starting normal cutting.
6.Do not touch the saw blade in rotation.
Do not touch the saw blade when the Angle is still rotating. This will cause serious injury and is very dangerous.
7.When operating at heights.
If the machine is operated at a high altitude, please pay attention to selecting a stable and secure location for installation.
8.When the cutting machine is cutting laterally.
Because the machine must use cooling water during operation, it is very dangerous for the main machine motor to be above during horizontal cutting, and vice versa. When the saw blade is above, water will run into the motor, which is very dangerous.
9.When an abnormal phenomenon is found.
In the process of cutting, if the saw blade stops or you hear an abnormal sound, please turn off the switch immediately.
10.Please clean the machine after use.
In order to maintain the service life of the machine, please keep the fuselage clean at any time after use.
The machine has no plug, please connect the power cord to the air switch.
